What FDA Investigators Look for in Pharmaceutical HVAC Systems
Operating a sterile manufacturing suite or drug packaging facility requires continuous environmental control. Heating, ventilation, and air conditioning systems serve as primary defenses against microbial contamination and cross-contamination across cleanrooms. When Consumer Safety Officers (CSOs) arrive for an FDA HVAC inspection pharmaceutical audit, they examine air handling blueprints, pressure differentials, and particle counts. Preparing for this review demands an active Quality Management System that can defend daily environmental monitoring trends and HEPA filter integrity records.
Under 21 CFR Part 211 and official Current Good Manufacturing Practice (cGMP) guidelines, federal regulators enforce strict cleanroom air standards. Investigators scrutinize whether your air handling units maintain proper air change rates, directional airflow patterns, and positive pressure cascades. Gaps in filter certification, unverified airflow visualization studies, or unaddressed pressure reversals trigger Form FDA 483 observations. Structuring your facility engineering programs around core federal expectations protects commercial batches and maintains regulatory standing.
1. Statutory Architecture: Engineering and Environmental Control Baselines
Federal investigators evaluate air handling design under statutory rules codified in 21 CFR Part 211.46 (Ventilation, Air Filtration, Air Heating and Cooling) and 21 CFR Part 211.42 (Design and Construction Features). An FDA HVAC inspection pharmaceutical review begins by evaluating whether physical air handling units prevent particulate migration and product contamination.
┌──────────────────────────────────────────────────────────┐
│ PHARMACEUTICAL CLEANROOM HVAC DESIGN │
└────────────────────────────┬─────────────────────────────┘
│
┌────────────────────────┴────────────────────────┐
▼ ▼
┌──────────────────────────────────────┐ ┌──────────────────────────────────────┐
│ AIR HANDLING UNIT (AHU) │ │ CLEANROOM AIR CASCADES │
│ - Pre-filters & intermediate filters │ │ - Terminal HEPA filtration (99.97%) │
│ - Steam humidification (clean steam) │ │ - Positive pressure differentials │
│ - Temperature & humidity sensors │ │ - Minimum air change rates (20-60 ACH│
│ - Dedicated return and exhaust paths │ │ - Unidirectional airflow in Grade A │
└──────────────────────────────────────┘ └──────────────────────────────────────┘
The agency expects facilities to maintain detailed engineering schematics. Investigators trace physical ductwork layouts against printed blueprints to verify that air supply and return pathways match facility design specifications.
Furthermore, investigators review qualification protocols. The engineering team must demonstrate successful completion of air balance reports, HEPA filter leak tests, and smoke studies under official FDA Pharmaceutical Quality Resources (FDA.gov Direct Portal).
+---------------------------+-----------------------------------+-----------------------------------+
| Cleanroom Classification | Non-Viable Particle Limit (≥0.5µm)| Minimum Air Changes Per Hour (ACH)|
+---------------------------+-----------------------------------+-----------------------------------+
| ISO 5 / Grade A (Critical)| 3,520 particles / m³ | Unidirectional (0.36 - 0.54 m/s) |
| ISO 7 / Grade B (Background)| 35,200 particles / m³ | 40 to 60 ACH |
| ISO 8 / Grade C (Support) | 352,000 particles / m³ | 20 to 30 ACH |
| ISO 8 / Grade D (General) | 3,520,000 particles / m³ | 15 to 20 ACH |
+---------------------------+-----------------------------------+-----------------------------------+
🚨 Take Immediate Control of Your Cleanroom Air Handling
Audit your differential pressure cascades, evaluate HEPA filter integrity test logs, and verify that your environmental CAPAs satisfy federal scrutiny.
2. The Inspection Sequence: How Investigators Audit Air Handling Systems
Understanding the physical and documentary audit path helps your engineering and quality units manage investigator requests smoothly. An FDA HVAC inspection pharmaceutical follows a structured sequence from engineering drawing reviews to environmental monitoring record audits under statutory rules codified in 21 U.S. Code § 374 (Factory Inspection Authority).
Investigators review automated facility controls and electronic data systems during utility audits. You can explore modern agency review methods by reading our briefing on FDA Inspection Trends in 2026: Biologics, AI, Foreign Facilities, and Remote Assessments.
┌──────────────────┐ ┌──────────────────┐ ┌──────────────────┐ ┌──────────────────┐
│ Blueprint & HVAC │ ──► │ Physical Utility │ ──► │ Environmental │ ──► │ Excursion CAPA │
│ Schematic Review │ │ Skid Walkthrough │ │ Monitoring Audit │ │ & 483 Review │
└──────────────────┘ └──────────────────┘ └──────────────────┘ └──────────────────┘
Phase 1: Engineering Blueprint Reconciliation
The investigator reviews master HVAC schematics in a conference room. The officer examines air supply pathways, return air grilles, pressure cascade differentials, and air change rate calculations across all cleanroom suites.

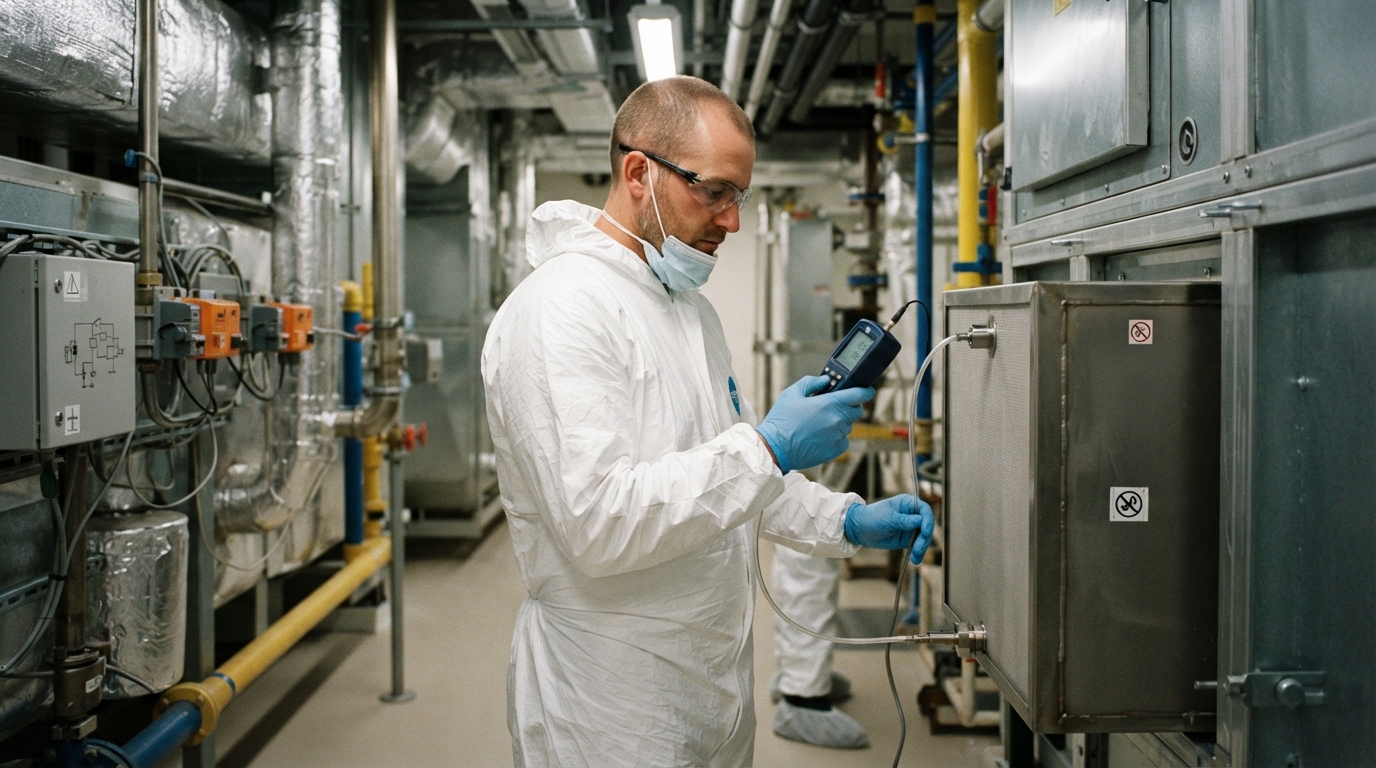

Phase 2: Physical Utility Skid and AHU Walkthrough
The investigator walks the mechanical utility floor to inspect air handling units. Officers check for filter housing bypass, verify calibration tags on pressure transmitters, and inspect condensate drain traps for sanitary design.
Phase 3: Environmental Monitoring Data Audit
The officer reviews laboratory logbooks covering non-viable particle counts, viable settle plates, contact plates, and personnel monitoring logs. The investigator checks whether sampling frequencies follow the written validation plan.
Phase 4: Excursion Investigation and Maintenance Review
The investigator evaluates all instances where cleanroom particle or microbial counts exceeded alert or action levels. Officers review root-cause investigations, filter change-out logs, and associated product impact assessments.
To ensure your engineers and technicians communicate effectively during walkthrough interviews, explore our training manual on How to Prepare Employees for FDA Investigator Interviews.
💡 Former FDA Investigator Perspective: Smoke Study Validation
[Expert Insertion Placeholder: Insert practical commentary on how investigators review video recordings of airflow visualization studies to verify that air sweeps away from critical product exposure zones without turbulent dead zones.]
3. Five Critical Vulnerabilities Investigators Scrutinize Most
Federal investigators concentrate their scrutiny on five high-risk operational domains during an FDA HVAC inspection pharmaceutical evaluation. Structuring your facility maintenance and environmental monitoring program around these operational pillars ensures continuous readiness under federal law.
FIVE CRITICAL PHARMA HVAC AUDIT DOMAINS
┌─────────────────────────────────────────────────────────────────┐
│ 1. DIFFERENTIAL PRESSURE CASCADES & PRESSURE REVERSALS │
│ - Positive/negative room differentials, magnehelic gauges │
├─────────────────────────────────────────────────────────────────┤
│ 2. HEPA FILTER INTEGRITY & LEAK TESTING (PAO/DOP) │
│ - Semi-annual challenge tests, downstream penetration limits │
├─────────────────────────────────────────────────────────────────┤
│ 3. AIR CHANGE RATES & AIRFLOW VELOCITY MAPPING │
│ - ACH calculations, unidirectional velocity (0.36 - 0.54 m/s)│
├─────────────────────────────────────────────────────────────────┤
│ 4. CLEANROOM MONITORING EXCURSIONS & CAPA INVESTIGATIONS │
│ - Root-cause depth, viable recovery trends, product impact │
├─────────────────────────────────────────────────────────────────┤
│ 5. PREVENTATIVE MAINTENANCE & FILTER REPLACEMENT LOGS │
│ - Pre-filter change schedules, steam trap maintenance, alarms│
└─────────────────────────────────────────────────────────────────┘
Domain 1: Differential Pressure Cascades and Pressure Reversals
Investigators inspect room pressure differentials to ensure cleaner rooms maintain positive pressure relative to surrounding support areas. A pressure reversal between an ISO 7 suite and an ISO 8 corridor represents a major cGMP citation.
Domain 2: HEPA Filter Integrity and Leak Testing
Terminal HEPA filters must undergo semi-annual integrity testing using aerosolized challenge agents (such as PAO or DOP). Officers inspect certification reports to confirm that downstream leakage does not exceed 0.01 percent.
Domain 3: Air Change Rates and Airflow Velocity Mapping
Air change rates must satisfy minimum standards based on cleanroom classification. For Grade A unidirectional workstations, investigators verify that airflow velocity remains stable between 0.36 and 0.54 meters per second.
Domain 4: Environmental Monitoring Excursions (21 CFR § 211.42)
When viable or non-viable particle counts exceed action limits, quality units must conduct comprehensive investigations. Regulators expect facilities to trace contamination sources, evaluate batch exposure risks, and implement effective CAPAs.
Domain 5: Preventative Maintenance and Filter Replacement Schedules
Investigators inspect maintenance logs for pre-filter and intermediate filter replacements, cooling coil cleaning, and steam humidifier inspections. Operating beyond validated maintenance intervals indicates a weak preventive maintenance program.
To evaluate data integrity controls and electronic records during audit remediation, review our technical guide on Top FDA Data Integrity Violations in Pharmaceutical Manufacturing.
💡 Former FDA Investigator Perspective: Differential Pressure Alarms
[Expert Insertion Placeholder: Insert technical insights explaining why uninvestigated transient pressure drops recorded by automated building management systems (BMS) represent immediate red flags for field inspectors.]
4. Key Insights: Strategic Implications for Sponsors, CDMOs, and Manufacturers
+---------------------------+-----------------------------------+-----------------------------------+
| Strategic Business Domain | Executive Enterprise & Compliance Implication |
+---------------------------+-----------------------------------+-----------------------------------+
| CDMO Governance | Brand sponsors face direct product recalls for contractor HVAC gaps|
| Commercial Continuity | HVAC pressure failure halts sterile filling lines immediately |
| Capital Allocation | Upgrading aged AHUs and HEPA housings prevents chronic excursions |
| Quality System Integrity | Rigorous environmental trending identifies facility contamination |
+---------------------------+-----------------------------------+-----------------------------------+
Mastering compliance under FDA HVAC inspection pharmaceutical standards represents a vital operational priority for life sciences executives. For brand sponsors, contract development and manufacturing organizations (CDMOs), and biotech producers, environmental control directly affects enterprise valuation. Regulatory officers audit crossover facilities—such as operations manufacturing sterile parenterals, biologics, and advanced medical diagnostics—against strict cGMP standards under 21 CFR Part 211 (Finished Pharmaceuticals).
Managing third-party manufacturing partnerships presents acute operational vulnerabilities. When a CDMO experiences uninvestigated cleanroom excursions, the brand sponsor’s commercial batches face immediate quarantine. If the FDA uncovers unvalidated air cascades or filter bypass at a contractor, authorities can halt product release across distribution networks.
The commercial impact of utility non-compliance is fast and severe. Unresolved HVAC observations escalate to public Warning Letters, import alerts, and federal consent decrees. These public enforcement actions trigger batch rejections, product recalls, and multi-million-dollar facility redesign expenses.
UNINVESTIGATED CLEANROOM EXCURSION
│
▼
FORM FDA 483 ISSUED WITH DATA INTEGRITY GAPS
│
▼
STERILE FILLING LINE SHUTDOWN & PRODUCT RECALL
│
▼
┌───────────────────────────────────────────────────────────────┐
│ SEVERE ENTERPRISE IMPACT │
│ - Commercial revenue loss from halted sterile fill lines │
│ - Supply contract cancellations by global commercial partners│
│ - Multi-million dollar third-party facility remediation costs│
└───────────────────────────────────────────────────────────────┘
Forward-thinking manufacturing leaders treat environmental management as a high-priority quality process. Implementing automated continuous monitoring, predictive maintenance schedules, and robust excursion investigation protocols eliminates compliance blind spots. Conducting regular mock audits protects enterprise reputation, satisfies institutional buyers, and maintains uninterrupted operational access.
For an extensive review of active regulatory warning trends, consult our executive analysis of FDA Warning Letter Issued to Novo Nordisk Signals Expanding FDA Inspection Focus Beyond Traditional GMP Operations.
5. What Recent Warning Letters Reveal About Air Handling Failures
Recent federal enforcement data illustrates that inadequate environmental investigations and deficient filter maintenance continue to drive agency citations. Regulators penalize facilities that treat cleanroom excursions as isolated sensor errors.
A review of recent actions on the official FDA Warning Letters Master Directory shows recurring air handling violations:
- Failing to investigate microbial or particulate action limit excursions in sterile cleanrooms (21 CFR § 211.42).
- Releasing sterile drug products manufactured in suites experiencing pressure reversals against support corridors.
- Operating cleanrooms with uncertified HEPA filters exceeding allowable leakage thresholds.
- Inadequate routine environmental monitoring leading to established microbial contamination in critical filling zones.
Distribution of Recurring Citations in HVAC Warning Letters:
1. Inadequate cleanroom environmental excursion investigations .. 42%
2. Pressure differential failures & room pressure reversals .... 26%
3. Uncertified or leaking terminal HEPA filtration units ....... 19%
4. Expired calibration & BMS data integrity anomalies ......... 13%
To review specific operational themes shaping biological manufacturing oversight, explore our guide on FDA Inspection Preparation for Biologics Manufacturers.
6. Actionable Blueprint: How to Build an Audit-Ready HVAC System
Establishing an inspection-ready environmental program requires a disciplined, repeatable operational framework. Following a structured roadmap ensures your engineering and quality teams master an FDA HVAC inspection pharmaceutical audit with technical precision.
┌────────────────────────────────────────────────────────────────────────┐
│ FOUR-PHASE HVAC READINESS BLUEPRINT │
├────────────────────────────────────────────────────────────────────────┤
│ PHASE 1: ENGINEERING SCHEMATIC & PRESSURE CASCADES │
│ - Audit cleanroom pressure differentials against master blueprints. │
├────────────────────────────────────────────────────────────────────────┤
│ PHASE 2: HEPA INTEGRITY & AIRFLOW VELOCITY TESTING │
│ - Execute semi-annual PAO leak tests and verify unidirectional flow. │
├────────────────────────────────────────────────────────────────────────┤
│ PHASE 3: ENVIRONMENTAL MONITORING EXCURSION CAPA │
│ - Investigate viable/non-viable spikes and evaluate batch impact. │
├────────────────────────────────────────────────────────────────────────┤
│ PHASE 4: PREVENTIVE MAINTENANCE & CALIBRATION AUDIT │
│ - Audit pre-filter changes, steam traps, and BMS sensor calibrations. │
└────────────────────────────────────────────────────────────────────────┘
Actionable Implementation Protocols
- Audit Room Pressures Daily: Review continuous building management system (BMS) pressure logs to verify positive pressure cascades across all cleanrooms.
- Enforce Semi-Annual HEPA Certifications: Require independent certification engineers to perform PAO leak testing on all terminal filters every six months.
- Validate Airflow Visualization Studies: Ensure smoke studies cover worst-case dynamic operating conditions and personnel intervention scenarios.
- Investigate All Environmental Spikes: Treat every particulate or viable excursion as a serious quality event requiring root-cause analysis and product impact review.
- Maintain Strict Maintenance Logs: Replace pre-filters, intermediate filters, and clean steam traps according to validated operating hours.
To understand broader inspectional workflows across pharmaceutical facilities, explore our companion analysis on How FDA Investigators Conduct GMP Inspections and our practical manual on FDA Inspection Readiness for Pharmaceutical Manufacturers. Additionally, review our guide on The 15-Day Rule: Responding to FDA Form 483 Observations to ensure your team is prepared for post-inspection milestones.
7. Conclusion
Successfully navigating an FDA HVAC inspection pharmaceutical evaluation requires an active Quality Management System that connects facility engineering with microbiological oversight. Cleanroom air handling systems represent the environmental backbone of pharmaceutical and biotech manufacturing suites. By auditing pressure cascades, maintaining certified HEPA filtration, and conducting thorough excursion investigations, your facility establishes a defensible state of control. Proactive environmental management protects your commercial product pipeline, maintains institutional buyer trust, and ensures seamless compliance during an unannounced regulatory audit.
🛡️ Protect Your Plant Against Disruptive Inspection Citations
Audit your cleanroom pressure cascades, evaluate HEPA filter certification logs, and verify that your environmental CAPAs satisfy federal scrutiny.
Frequently Asked Questions (FAQs)
What is the most common citation during an FDA HVAC inspection pharmaceutical audit?
The most frequent violation involves failing to conduct thorough, scientifically sound investigations into cleanroom particulate and microbial action limit excursions under 21 CFR § 211.42.
What is a cleanroom pressure cascade?
A pressure cascade ensures that air flows from cleaner areas to less clean areas, maintaining positive pressure in critical rooms to prevent contaminated air influx.
How often must terminal HEPA filters be tested for integrity?
Terminal HEPA filters in pharmaceutical cleanrooms must undergo integrity (leak) testing at least semi-annually (every six months).
What is an acceptable leak rate for a pharmaceutical HEPA filter?
During PAO/DOP challenge testing, downstream leakage through a terminal HEPA filter must not exceed 0.01 percent of the upstream challenge concentration.
Can an FDA investigator request building management system (BMS) audit trails?
Yes. Investigators routinely audit BMS electronic audit trails to verify that operators did not bypass or silence pressure and temperature alarms.
What is the difference between an alert level and an action level in environmental monitoring?
An alert level serves as an early warning threshold indicating potential environmental drift. An action level requires immediate documented investigation, cleaning, and product impact assessment.
